Name: 18U IP55 Wall Mounted Outdoor Server Rack Waterproof Cabinet for Industrial Use
Brand: Ningbo Latitude Communication Equipment Co.,Ltd
SKU: LE-CA
Price: 260.00 USD
Availability: InStock

18U IP55 Wall Mounted Outdoor Server Rack Waterproof Cabinet for Industrial Use

基本情報

起源の場所:	中国
ブランド名:	LE
証明:	RoHS、CE
モデル番号:	LE-CA

最小注文数量:	10個/個
価格:	交渉可能
パッケージの詳細:	組立梱包またはフラット梱包
受渡し時間:	7作業日
支払条件:	T/T
供給の能力:	1週間あたり1000個/個のネットワークキャビネット

接触

カラーシリアル:	RAL7035SN;RAL2000SN	保護の程度:	IP55
身長:	22u-42u	材料の厚さ:	取付パネル：1.2mm、その他：1.2m
カスタマイズされた:	利用可能	幅:	200-600mm
深さ:	120-420MM	OEMサービス:	はい
ハイライト:	18U outdoor server rack , IP55 waterproof server cabinet , industrial wall mounted rack

Wall mounted Rack Outdoor Small Rack Cabinet IP54 Waterproof Server Rack

Key Features

Strong and stable framework of cabinet, precise dimension, capacious inner mounting space.
Multi-folded periphery of enclosure to keep water or dust out of cabinet.
All-round polyurethane gasket near the protect slot with dustproof and waterproof.

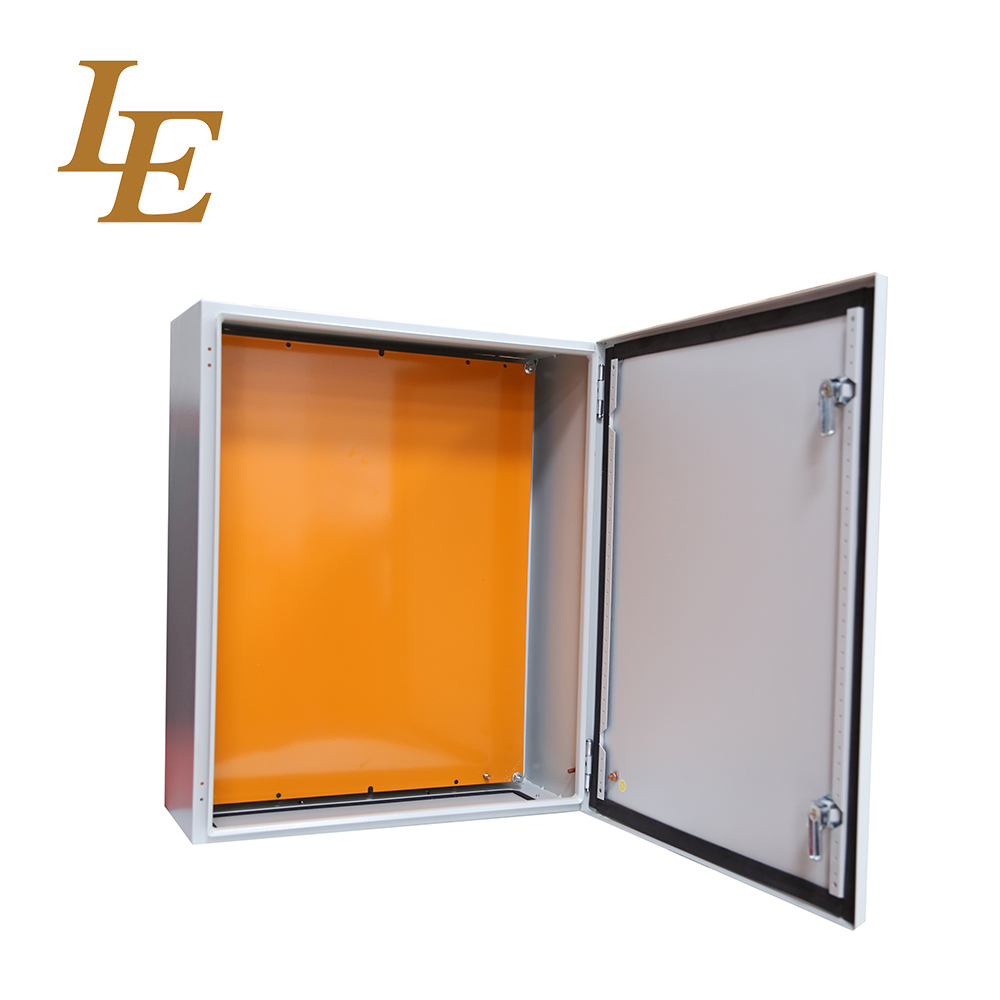

Front door can open to 110 degree, from left or right.

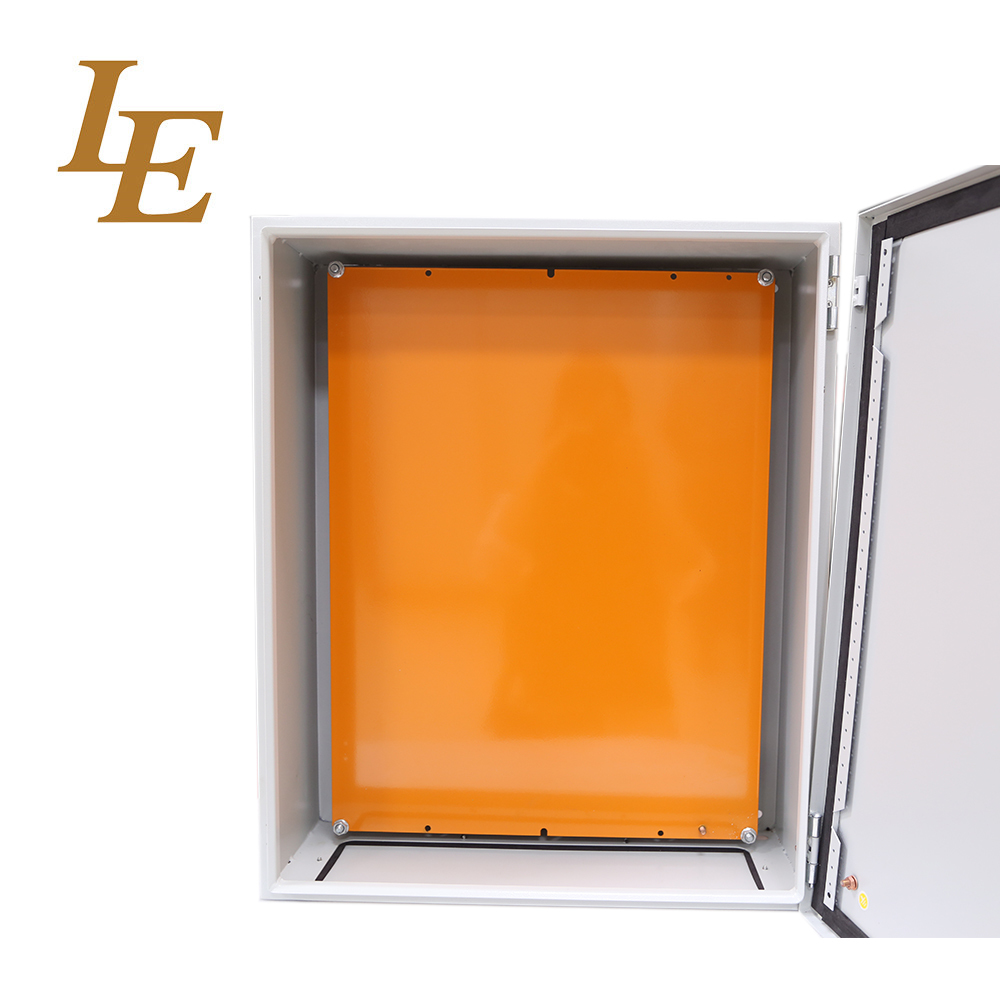

Adjustable mounting panel inner the enclosure.
The bottom have cable entrance with cover; sealed rings protection.

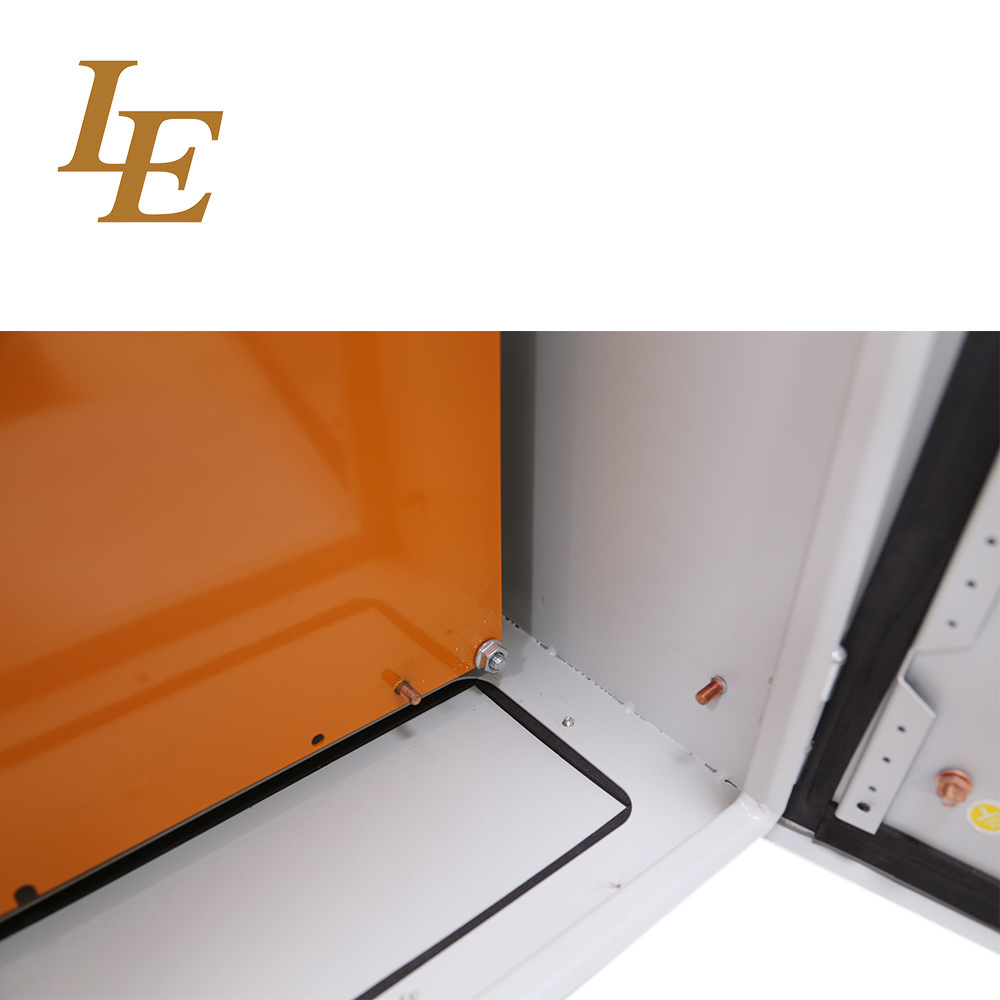

M8 earthling pole on the body, mounting panel and door.
Mounting bracket on the rear part of enclosure, which make the enclosure installing easily.

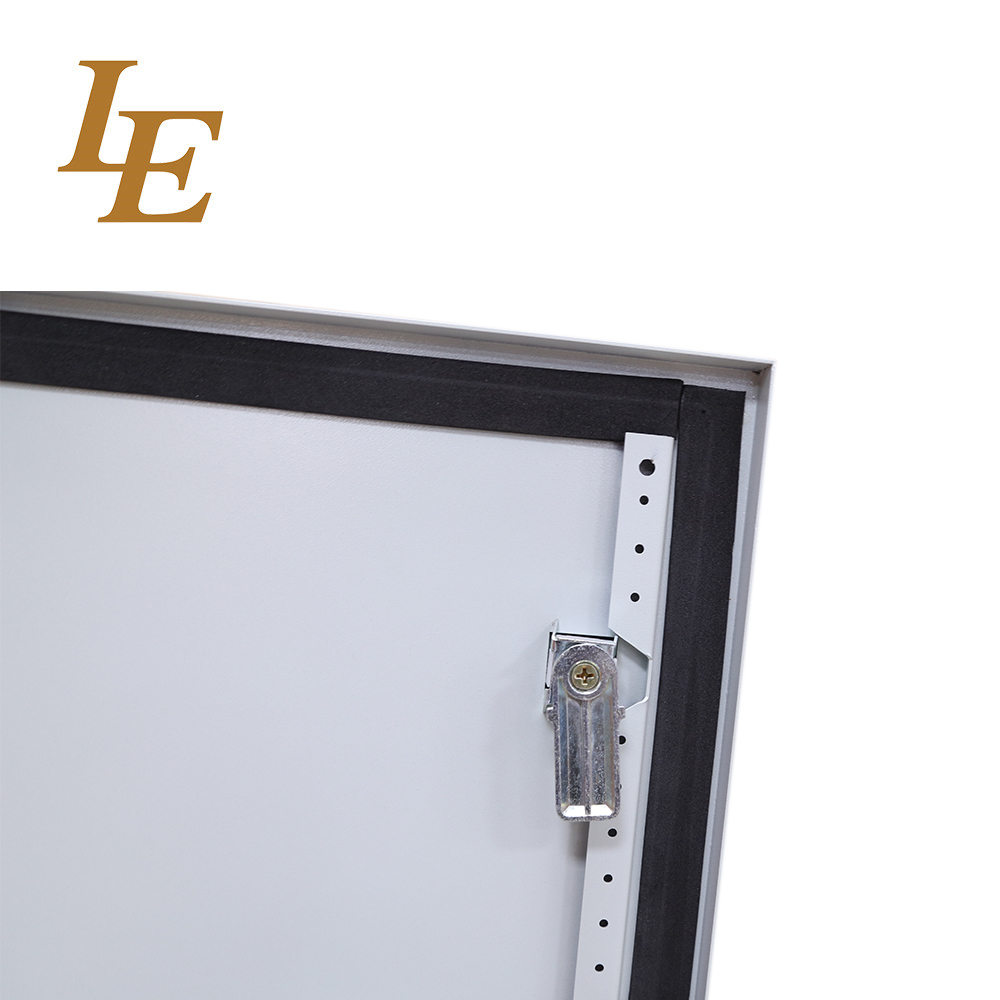

Lock for front door with good seal performance.
Apply to mount various industrial components, controlling equipments and cable management

Product Specifications

Material	SECC quality cold rolled steel; Mounting profile: Thickness:1.2mm; Others:1.0mm;
Loading Capacity	Static loading: 100kg
Degree of protection	IP65
Surface Finish	Degreasing; Pickling; Phosphating; Powder Coated
Product Specification	6U-18U Width: 600mm Depth: 600mm, 450mm
