| 起源の場所: | 中国 |
|---|---|
| ブランド名: | LE/OEM |
| 証明: | CE ROHS |
| モデル番号: | LE-WS2 |
| ドキュメント: | LE Catalogue 2026.01.27_11_...S2.pdf |
| 最小注文数量: | 100 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 25-30日 |
| 支払条件: | T/T |
| 製品名: | 19 インチ 6U 9U 12U 15U 600mm 幅壁取り付けキャビネット データセンター | タイプ: | 壁掛けネットワークキャビネット |
|---|---|---|---|
| カラーシリアル: | ラル9004;ラル9005;ラル7035 | 身長: | 4U-18U |
| 材料の厚さ: | 取付プロファイル：1.5mm、その他：1.2mm | 積載量: | 静的負荷: 60KG |
| 静的負荷: 60KG: | IP20 | 表面仕上げ: | 脱脂,ピクルング,フォスファート,粉末塗装 |
| キーワード: | IP20防水19インチ分解壁掛けキャビネット | 証明: | CE ROHS |
| ハイライト: | 19 inch wall mounted server rack,6U data center rack cabinet,600mm width single section rack |
||

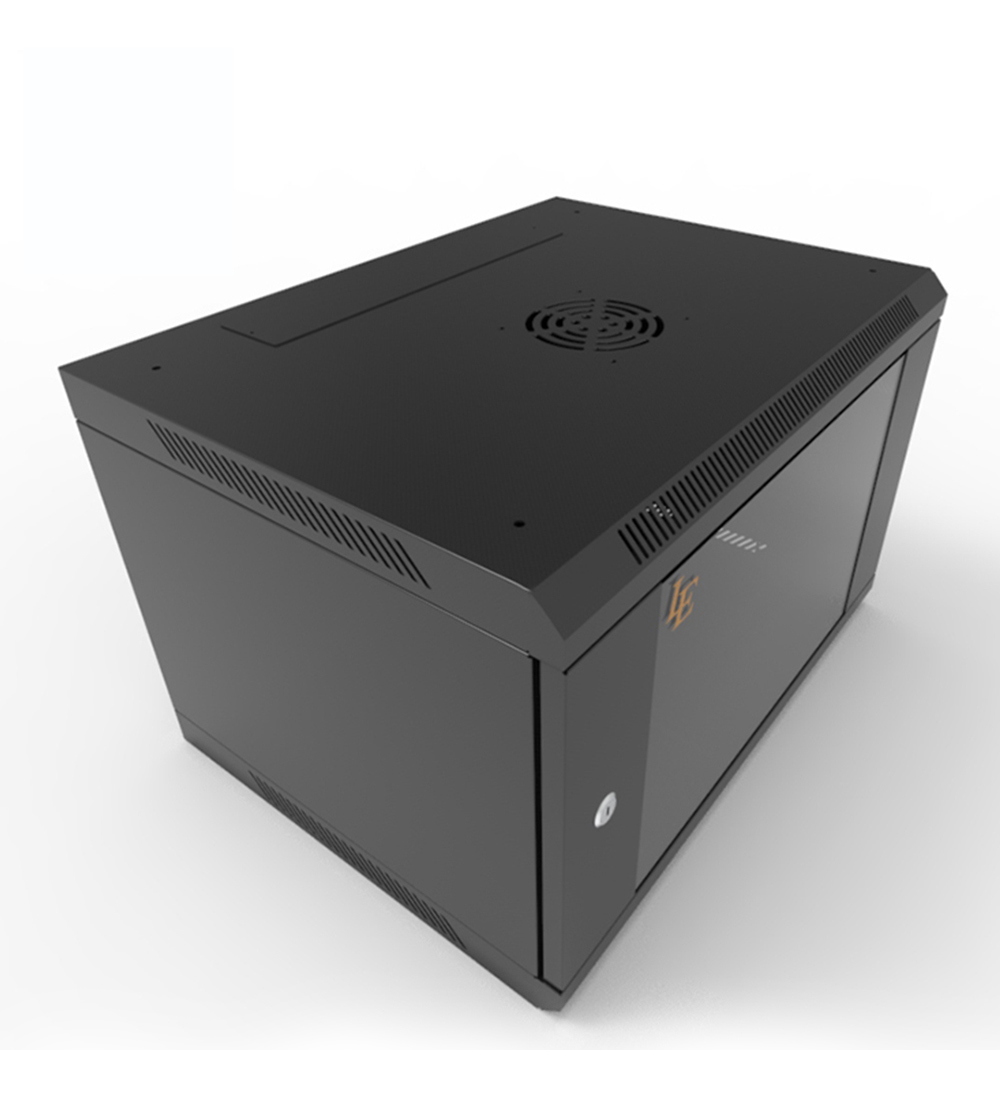

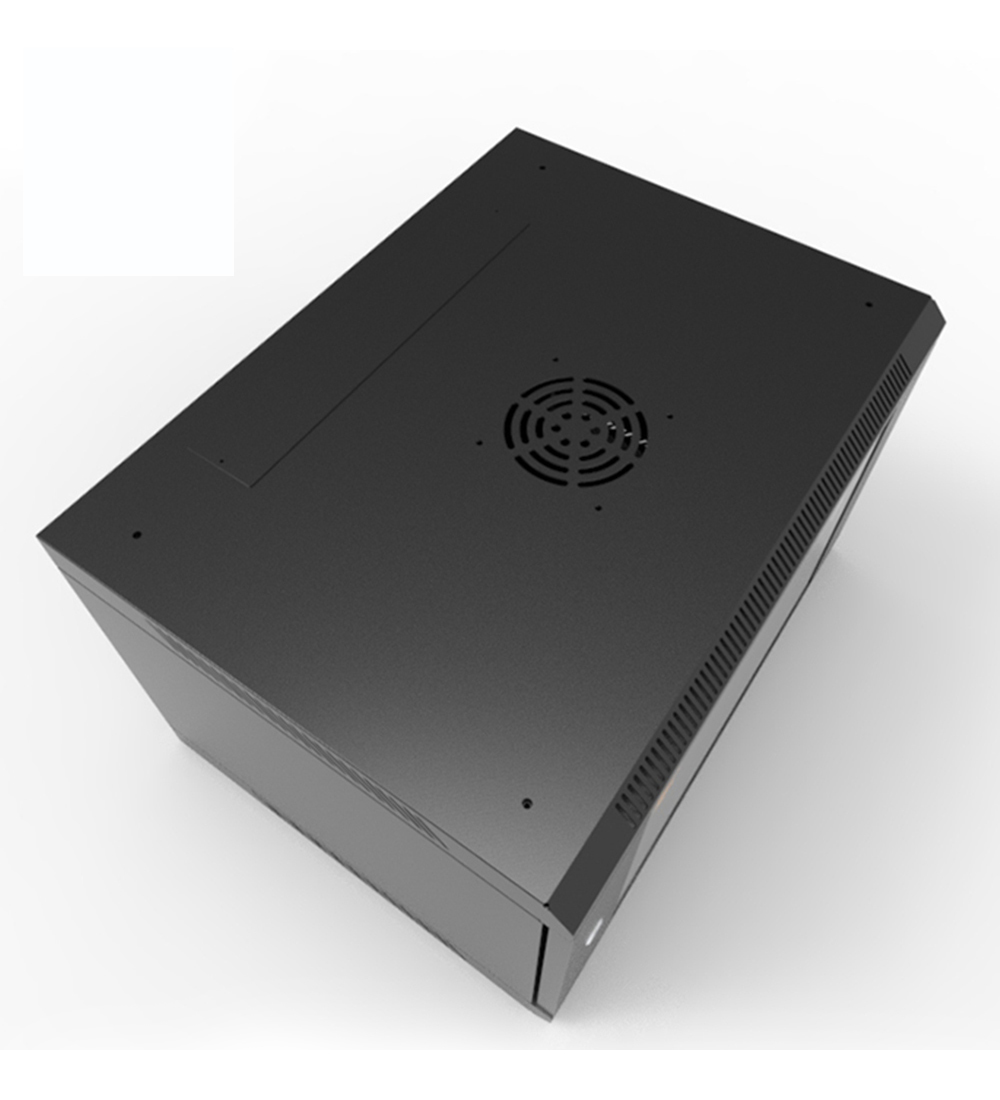

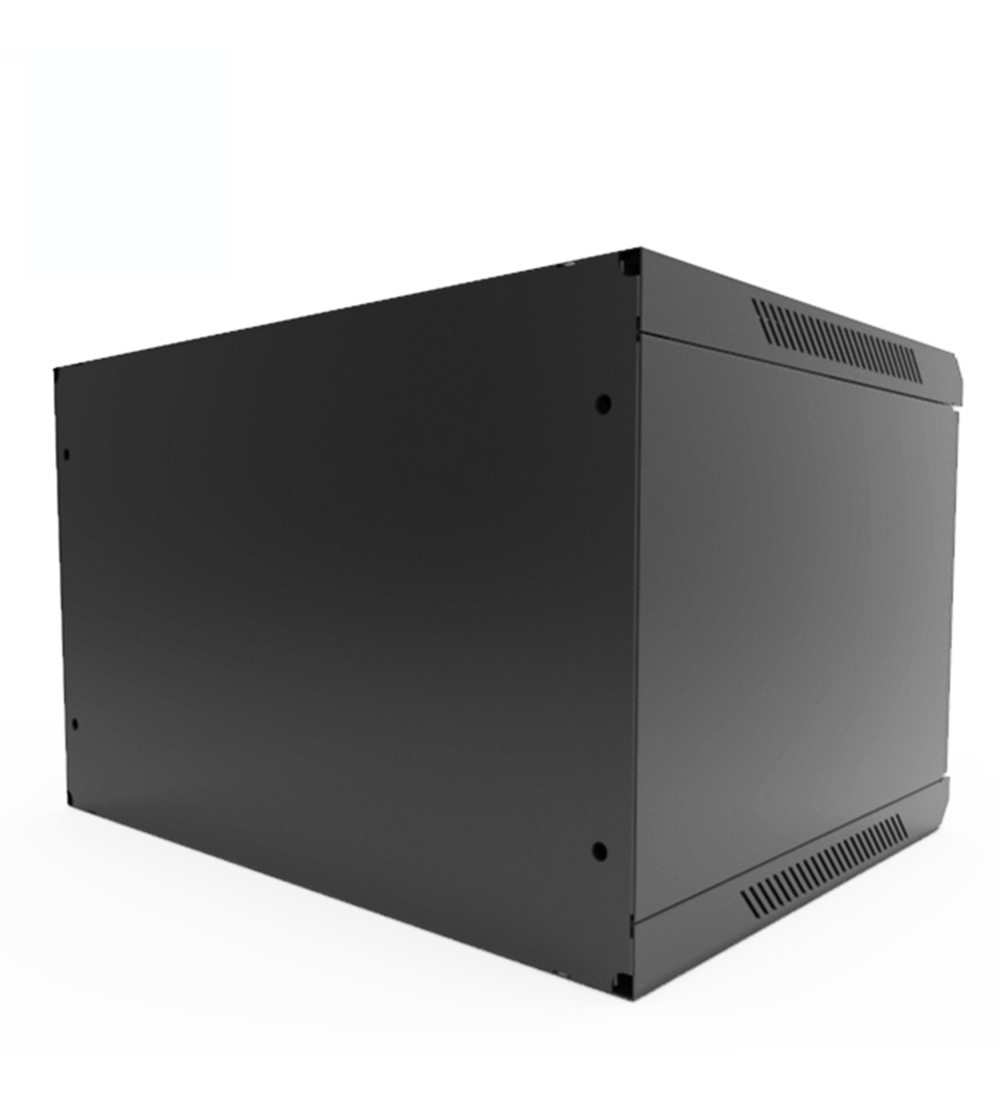

19 Inch 6U 9U 12U 15U 600mm Width Wall Mounted Cabinet Data Center Single Section Rack
| S/N |
LE-WS2 |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel: Thickness:1.2mm; Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 4U-18U Width: 600mm Depth: 450mm, 600mm |
|

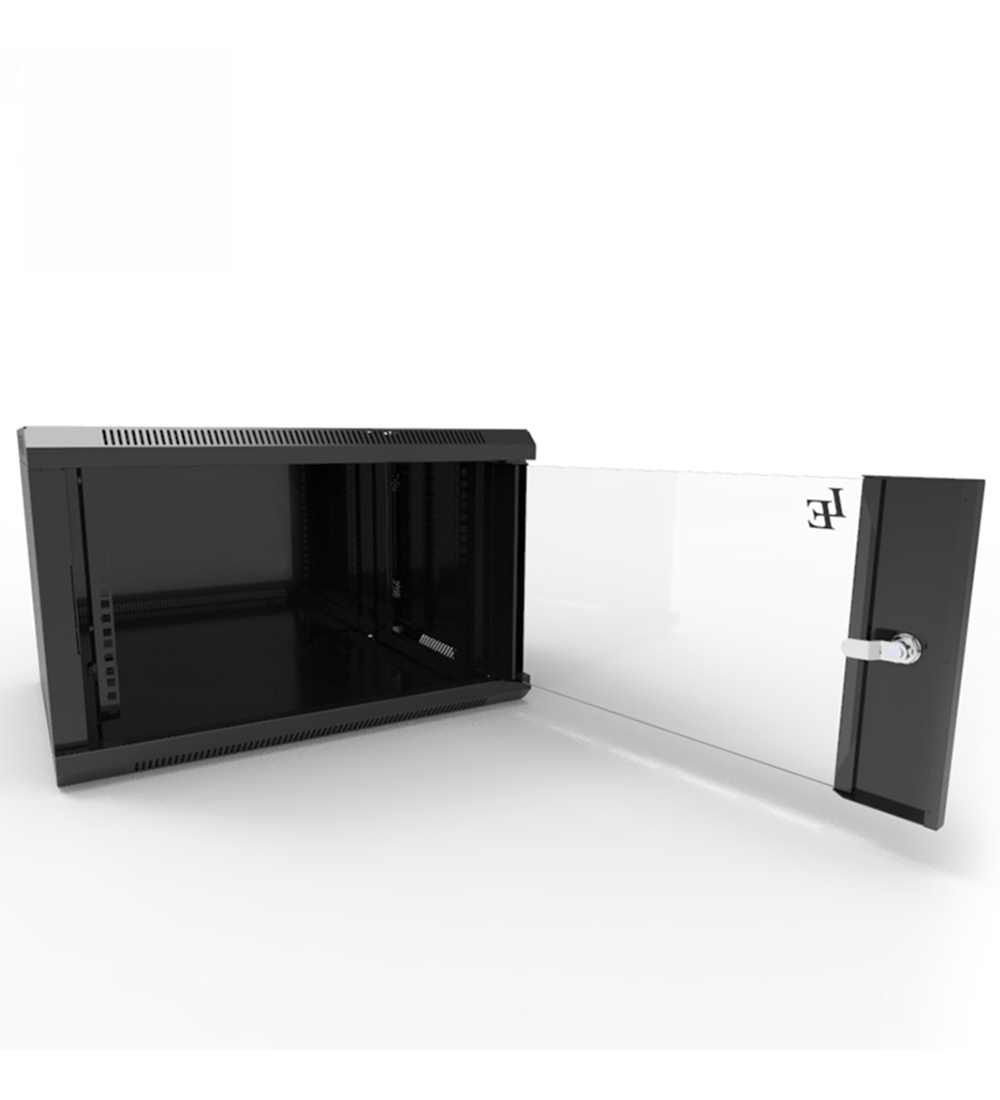

Main Structure 1. Installing Backboard 2. Mounting profile (L-shaped) 3. Cable entry plate 4. Top 5. Side panel 6. Tempered glass front door 7. Tempered glass front door with vented border 8. Tempered glass front door with meshed border |
Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop, design and manufacture the indoor and outdoor cabinet products. striving to be effectively dynamic and innovative and always maintained a steady growth although the extremely competitive market, we have the advanced equipment including TruLaser incision machine, TruPunch Presses machine, CNC equipment, spraying paining line and other equipment. In order to assure the stable and high quality of products, we develop the quality control system and operate the manufacturing procession under the International quality system certification.
Our Advantages
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
1. Q: Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Where is your factory located? How can I visit there?
A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or
Shanghai airport, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling for to the every
end. Our factory has gained CE,ROHS,SGS authentication.
