| 起源の場所: | 寧波、中国 |
|---|---|
| ブランド名: | LE |
| 証明: | CE/ISO/ROHS/TUV |
| モデル番号: | MW |
| 最小注文数量: | 10個 |
| 価格: | US$26.64-US$46.65 |
| パッケージの詳細: | 解体されたパッケージ/フラットパッケージ |
| 受渡し時間: | 20-30日 |
| 支払条件: | L/C,T/T,ウェスタンユニオン,マネーグラム,D/P |
| 供給の能力: | 週に1000pcs |
| 材料: | SPCC品質の冷たい鉄鋼 | 積載量: | 静的負荷: 15KG |
|---|---|---|---|
| 保護の程度: | IP20 | 表面仕上げ: | 脱脂,ピクルング,フォスファート,粉末塗装 |
| 身長: | 4U,6U,9U,12U | 幅: | 325mm |
| 深さ: | 300mm | 色: | RAL9004,RAL9005,RAL7035 |
10'' Single Section Wall-Mount Mini Cabinet – The Professional Choice for Compact Spaces
Overview
Engineered for space-constrained environments, our 10'' Single Section Wall-Mount Mini Cabinet combines a compact footprint, robust functionality, and flexible installation. Fully compatible with all standard 10’’ deep equipment, it serves as the ideal housing solution for network terminations, surveillance systems, smart control units, and small communication nodes—providing a secure, organized, and manageable home for your critical compact devices.
Key Features
Compact & Compatible Design: The single-section structure offers a minimalistic profile, making efficient use of vertical space while maintaining full compatibility with mainstream 10’’ deep equipment.

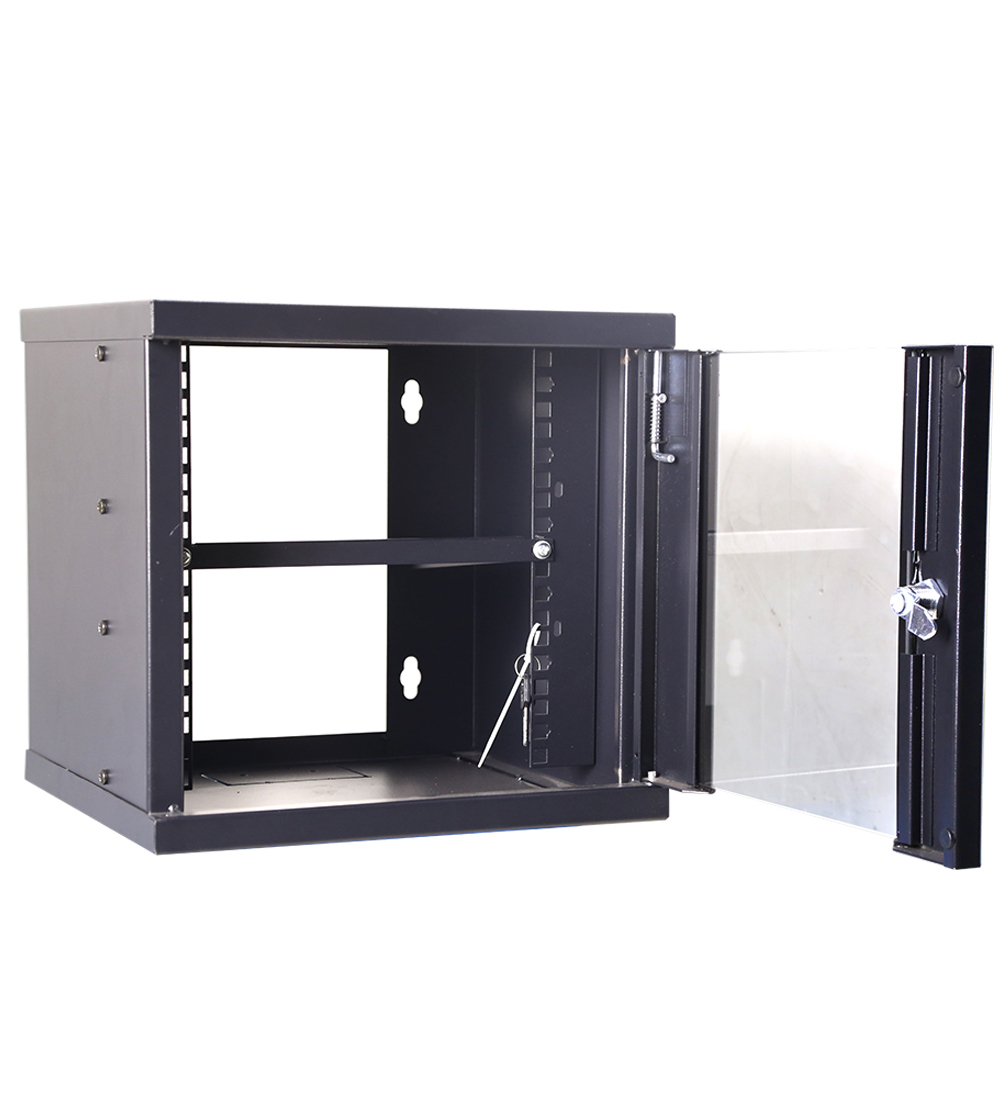

High-Visibility Front Door: Equipped with a 5mm tempered tapered glass door for excellent visibility and durability. The door opens over 180 degrees, allowing full front access for easy monitoring and maintenance.
Effective Cable Management: Features dedicated cable entry/exit ports on both the top and bottom panels. This facilitates neat cable routing from multiple directions, ensuring a clean and organized interior.
Flexible Mounting Framework: The interior includes versatile L-shaped mounting profiles, enabling adjustable positioning and easy installation of switches, routers, and various accessories (like shelves or PDU strips) for enhanced expandability.
Secure Wall-Mounting: The back panel comes with four pre-drilled mounting holes, allowing for quick, direct, and secure fixation to walls, poles, or the sides of racks using provided hardware.
Comprehensive Optional Accessories: A wide range of accessories, including cable managers, cooling fans, and PDU strips, is available. Customize your cabinet to create a fully functional, tailored solution that meets your specific application needs.
Typical Applications
SMB Network Wiring Closets
Building Security & Surveillance Installation Points (DVR/NVR, cameras)
Smart Home Control Hubs / Multimedia Enclosure Upgrades
In-room Network Equipment Housing for Hotels and Offices
Small Cell Sites & Fiber Access Points
|
|
|
SS/N S/N /N S/N
|
LE-MW
|
|
Material
|
SPCC quality cold rolled steel;
Mounting profile: Thickness:1.2 mm, tempered galss: 5mm
|
|
Loading Capacity
|
Static loading: 15kg
|
|
Degree of protection
|
IP20
|
|
Surface Finish
|
Degreasing; Pickling; Phosphating; Powder Coated
|
|
Product Specification
|
4U,6U,9U,12U
Width: 325mm Depth: 300mm Color: Ral9004, Ral9005, Ral7035
|
