| 起源の場所: | 中国 |
|---|---|
| ブランド名: | LE or OEM |
| 証明: | CE ROHS |
| モデル番号: | LE-WS1 |
| 最小注文数量: | 10個のPC |
| 価格: | USD25.5 |
| パッケージの詳細: | 組み立てられたパッキング |
| 受渡し時間: | 30-45DAYS |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union |
| 供給の能力: | 週に1000pcs |
| 材料: | SPCC品質の冷たい鉄鋼 | 厚さ: | 1.2mm |
|---|---|---|---|
| 固められたガラスの厚さ: | 5mm | 負荷容量: | 60kgs |
| 保護の程度: | IP20 | 表面仕上げ: | 脱脂,ピクルング,フォスファート,粉末塗装 |
| 製品仕様: | 4U-27U | 幅: | 600mm |
| 深さ: | 450mm,600mm | 色: | RAL9004, RAL9005, RAL7035 |
| ハイライト: | 19 inch wall-mounted server rack,9U server rack with fan,black server rack removable panels |
||

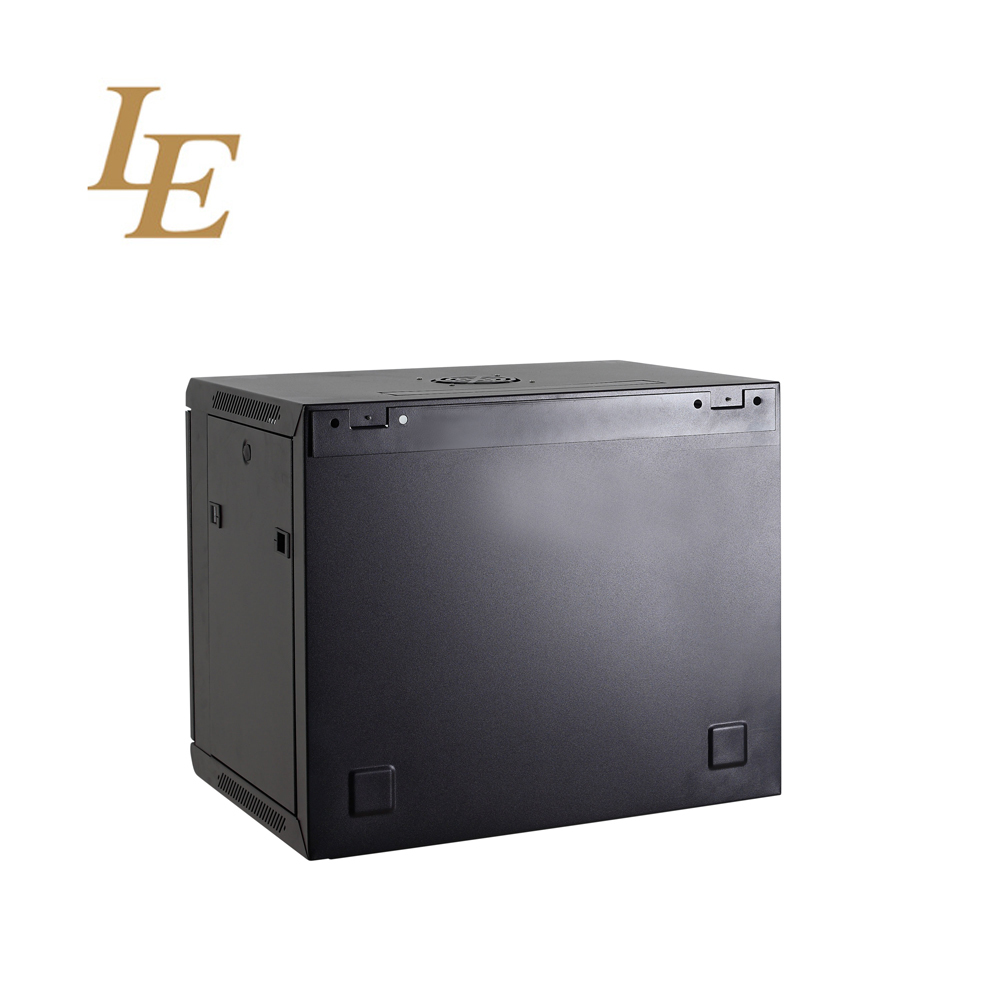

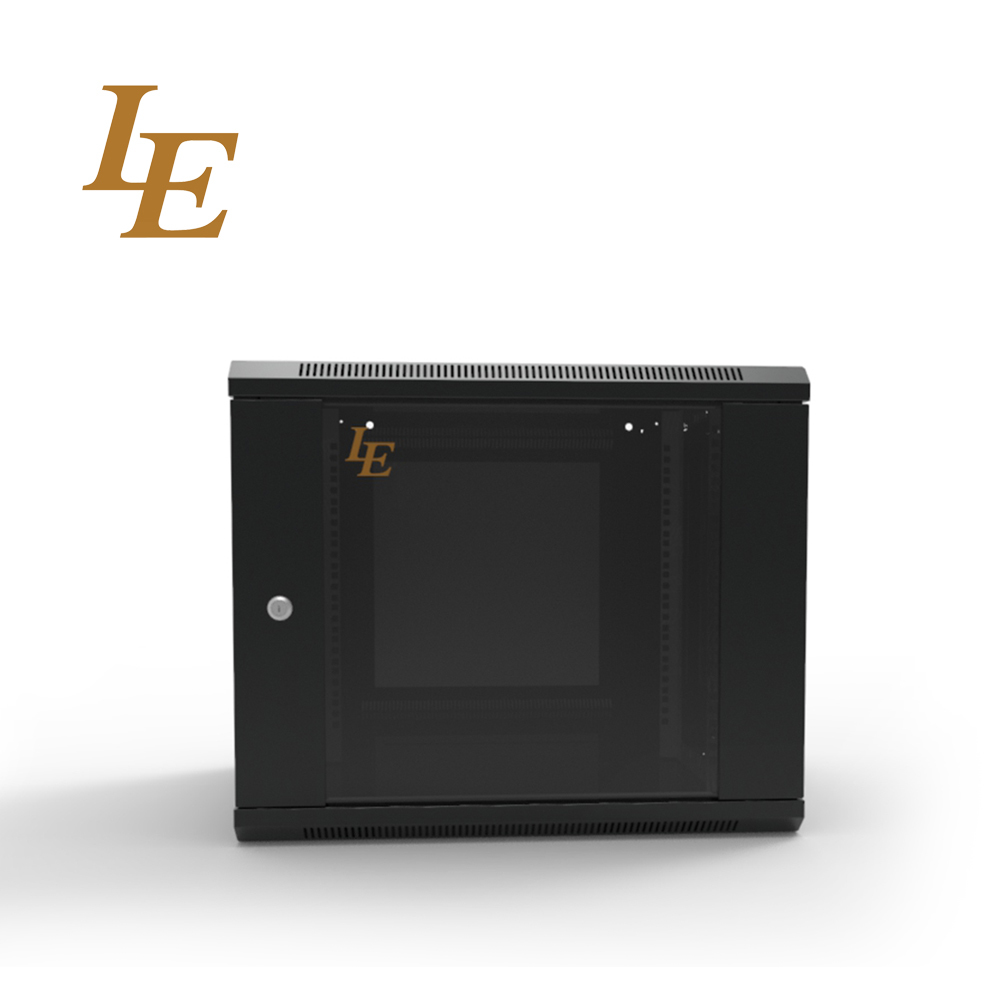

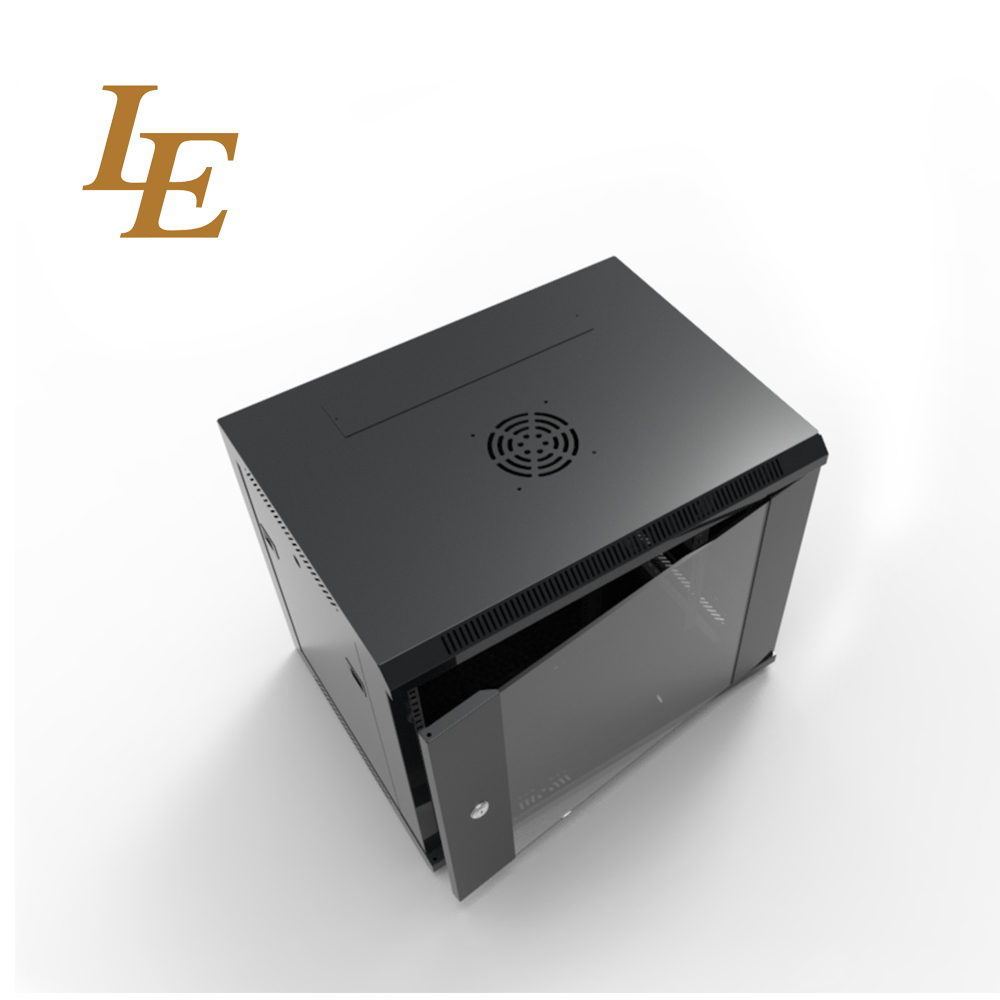

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004
| S/N | LE-WS1 |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel: Thickness:1.2mm; Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 4U-27U Width: 600mm Depth: 450mm, 600mm |
Main Structure
1. Installing Backboard
2. Mounting profile (L-shaped)
3. Cable entry plate

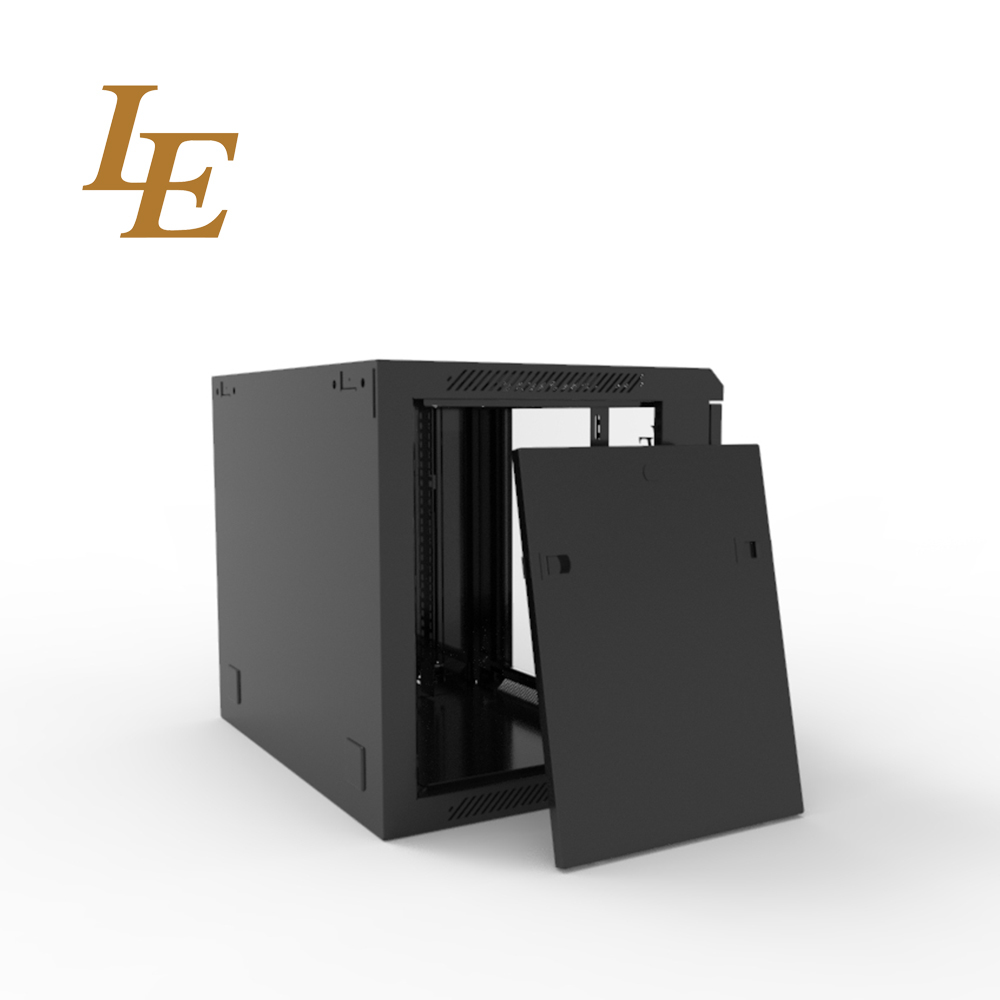

4. Side panel

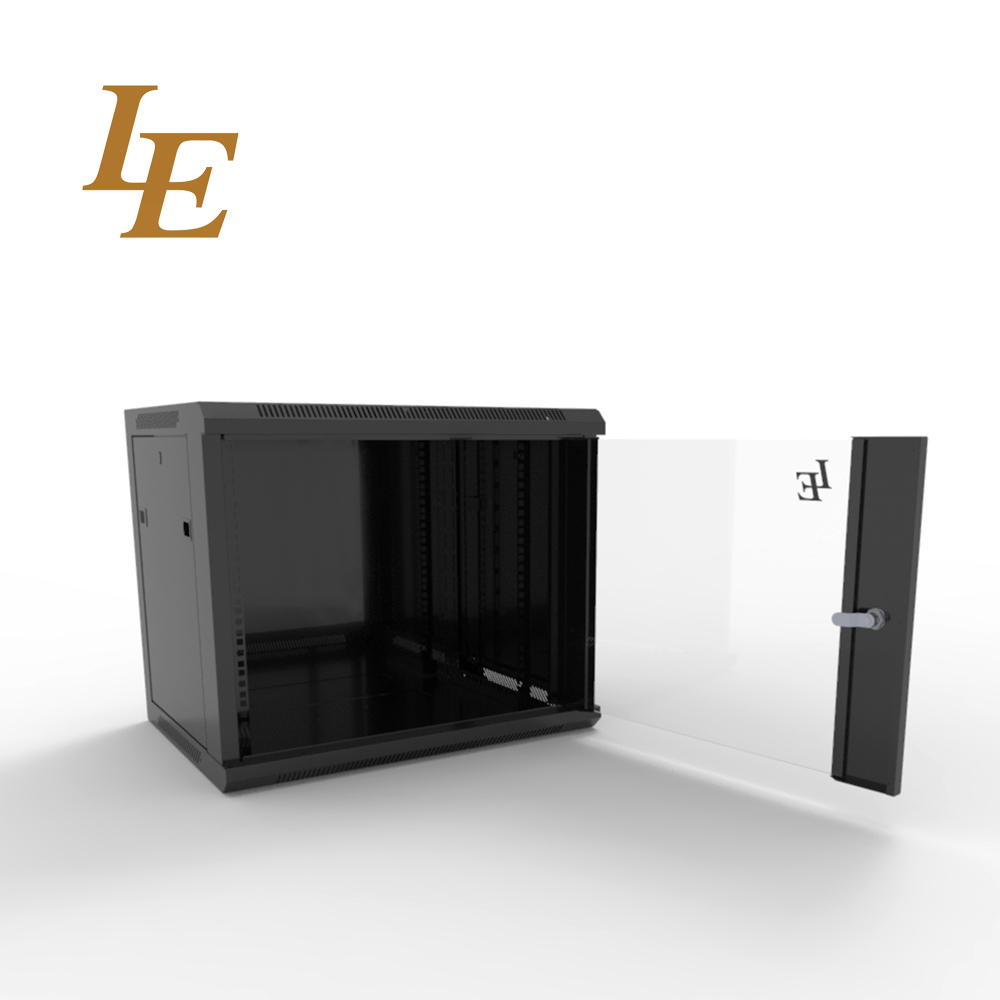

5. Tempered glass front door
6. Tempered glass front door with
vented border
7. Tempered glass front door with
meshed border
