| 起源の場所: | ニンボ、中国 |
|---|---|
| ブランド名: | LE |
| 証明: | CE/ISO/ROHS/TUV |
| モデル番号: | LE-ADSS |
| 最小注文数量: | 3000m |
| 価格: | US$0.2-US$0.4 |
| パッケージの詳細: | 組み立てられたパッキング |
| 受渡し時間: | 20〜30日 |
| 支払条件: | L/C,T/T,ウェスタンユニオン,マネーグラム,D/P |
| 供給の能力: | 50000M 週に |
| タイプ: | 同軸 | 動作温度: | -40°Cから+70°C |
|---|---|---|---|
| 外側の鞘: | PE/LSZH/PU | 繊維数: | 2-288 |
| 装甲式でも装甲式でもない: | アルミテープ外装 | 色: | 黒またはお好みで |
| 証明書: | CE/ISO/ROHS/TUV | 応用: | 通信 |

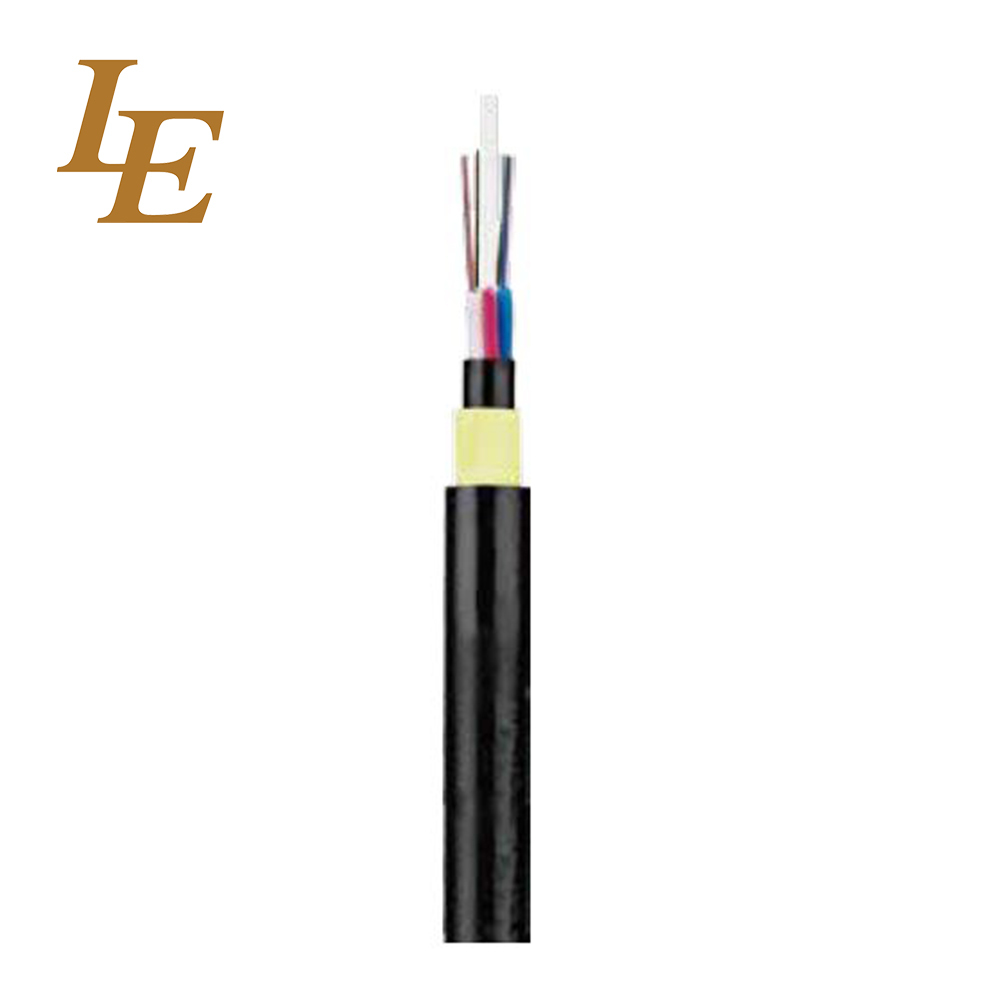

Outdoor 12 Core Single Mode Adss Fiber Optic Cable
Features:
ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking) outer sheath.
